15KW Residential Solar Battery System Complete Solar Power Kits For Homes

15KW off grid solar system configuration:

Off grid solar power supply system Model: SPS15KW
System Basic Information	Solar panel rated output power:   15000W
	Max power :500w / Vmp:54V  Voc:62.4V Solar Cell Use  5BB ,A+ Grade
	Allowable max loads power : 15KW
	Solar panel               type: SP500W mono solar panel
	Max power :500w / Vmp:54V  Voc:62.4V Solar Cell Use  5BB ,A+ Grade
	Imp 9.26A    Size : 2090*1106*35mm
	25 years life time  (CE TUV) Warranty:10 years ,ship the free one for service
	Connect way:6pcs solar panel in series is each string. 5 string connect to PV combiner
	Effieiency performace:25%years 80%,20years 85%.10 years 90%
	Total : 30 Pcs	Terminal block: IP65 with MC4 connector
	PV combiner              Model : PC4-240V
	Simplify wiring between PV array
	and controller, protections  to controller ,Wide range of DC input voltage
	Reliable thunderstorm& surge protection
	Total : 1PC   Warranty: 2 years , ship the free one for service
	Charge controller                 model:50A/240V
	Charging efficiency; 90%-95%,
	charging mode, intelligent control.,
	temperature compensation, various protection functions;
	Total : 1 Set  warranty : 2 years ship the free a main board for service
	Pure Sine Wave IGBT Module Inverter
	Model: SI15kw DC input:240V  Output: 110v,120v,220v,230v,240v(optional)
	Use copper transformer; Bypass function with AC charger
	Product size:590*470*730mm /  Weight:190KG
	Total : 1 Set  Warranty : 2 years ship the free a main board for service
	Solar power Gel battery                      Capacity:12V/200AH
	Servicelife : 5-6years Size:522*240*219mm / Weight:57KG
	Connect way: 20 pcs batteries in seriesconnect to inverter
	Total : 20Pcs   Warranty :2 years, ship the free one for service
	Solar panel rack              Slope Rooftop or Flat rooftop
	wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable
	Total : 1 Set
	PV Cable
	19pcs 16mm2*35CM battery cabl   4pcs 16mm2*1M cable     4mm2 PV cable 200M         terminals and MC4

15KW  solar system load reference:

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the off grid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

• 100%green energy，no pollution，no noise
• High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
• Stand-alone system,easy installation and operation
• Nice after-sale service,provide installation guide and technical support ​

Packing details:

• Solar panels are packed in carton and pallet
• PV combiners and inverter are packed in wooden box
• Solar charge controller,gel battery,and cables are packed in carton
• Solar panel racks are in cartons and bulk packing​

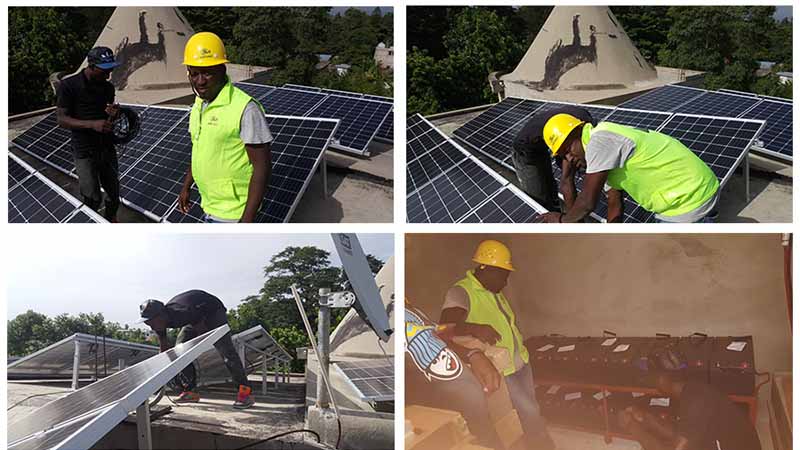

solar system case:
