1000W Mobile Home Solar Power Plant For Home Lighting
1000W Mobile Home Solar Power Plant For Home Lighting
1000W Mobile Home Solar Power Plant For Home Lighting
1000W Mobile Home Solar Power Plant For Home Lighting
1000W Mobile Home Solar Power Plant For Home Lighting

1000W Mobile Home Solar Power Plant For Home Lighting

1000W 12V off grid portable sola system solar battery for home

MODEL. : SP1KW

LEAD TIME : 7-15days

PRODUCT ORIGIN : CHINA

SHIPPING PORT : GUANGZHOU/FOSHAN

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

:

Whatapp:+86 13690853732

Email: candy@sunchees.com

Product Details

1000W portable solar system configuration:

 Off grid solar power supply system Model: SP1000W
System Information  Solar panel rated output power:  760W
Allowable max loads power : 1000W
Solar panel                    Mono    Solar panel               type: SP380W mono solar panel
Max power :380W / Vmp:36V  Voc:45V Solar Cell Use  5BB ,A+ Grade
Imp 10.55A    Size : 1732*1036*40mm
25 years life time  (CE TUV) Warranty:10 years ,ship the free one for service
Connect way:2pcs solar panel in parallel connect to the machine
Effieiency performace:25 years 80%,20years 85%,10 years 90%
Total : 2PCS Terminal block: IP65 with MC4 connector



Hybrid Solar Inverter

 cable

Hybrid Solar Inverter : 1000W/24V (Low frequency)
With built-in solar charge controller : 30A/24V
Charging efficiency:99%, Built-in AC charger (public network)
AC Output:110V/220V 50/60HZ *2pcs
DC Outpu:12V(3pcs)  5V(2pcs)
Protection:Overcharge / Overdischarge / Short circuit
With built-in LiFePO4 lithium battery : 1690WH(25.6V/66AH)
Rated voltage:25.6V(21.6V-29.2V)
Lifespan: 8-10 years.Full discharge cycle times:more than 2000 times
Working temperature: - 20℃ - + 55℃
Net Weight:32kgs    Product size:425*280*420mm
Other parts
4mm2 PV cable 50M;MC4 terminal connectors 1set;3w LED bulb *2pcs with cable;USB data cable *2pcs;12V/5V charger *1pc



Solar panel rack

Solar panel rack

Solar panel rack

Slope Rooftop or Flat rooftop including complete fittings, wind load:55m/s,

snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle Nadjustable                                 Total : 1 Set

  • 330watt A+ Grade mono solar panel*2pcs

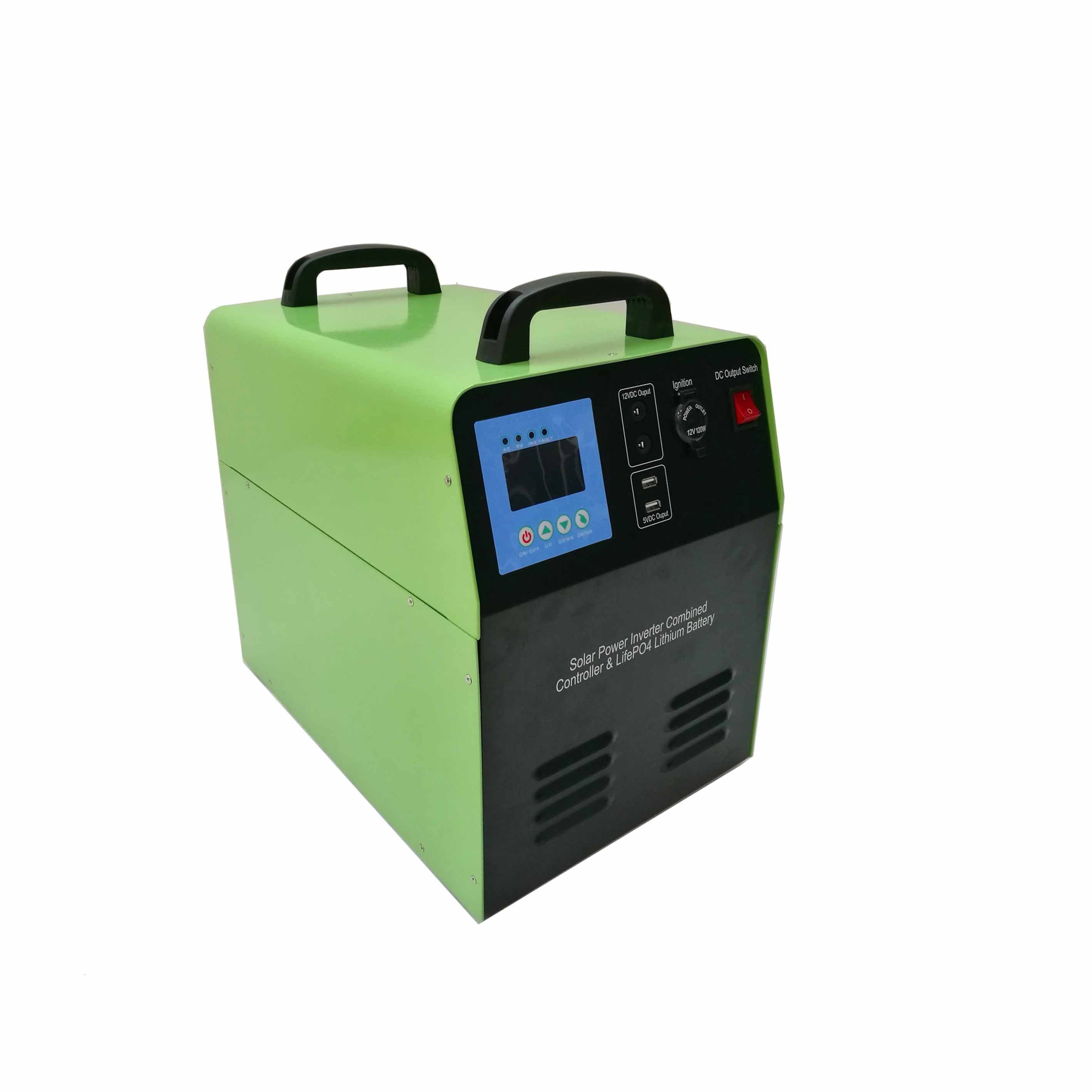

  • Green machine(with built in 30A/24V solar charge controller,1000W pure sine wave inverter,1690WH LifePO4 lithium battery bank)*1pc
  • PV cables&MC4 terminal connectors&USD data cable&3W LED bulb with cable&12V/5V charger*1set



How does the off grid solar power system work:

  • This system not only has solar power system function,but also has city grid complement function and UPS function
  • At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
  • At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
  • When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads



Advantage:

  • 100%green energy,no pollution,no noise
  • High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
  • Stand-alone system,easy installation and operation,plug and play
  • Nice after-sale service,provide installation guide and technical support.



Remark: water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

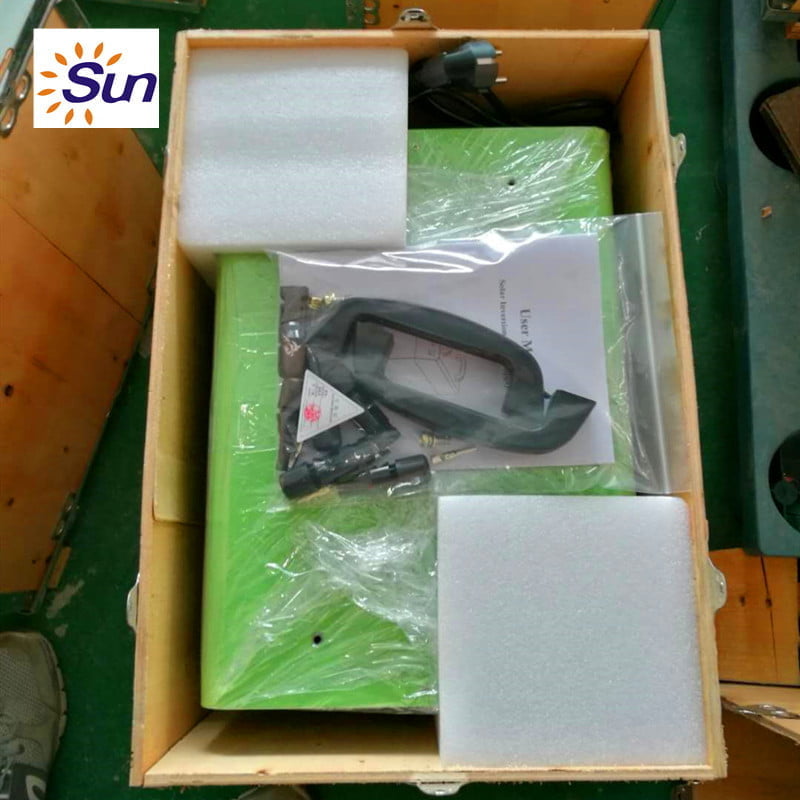

Packing details:

  • Solar panels are packed in carton.
  • Green machine is packed in wooden box
  • cables and other parts are packed in carton

package

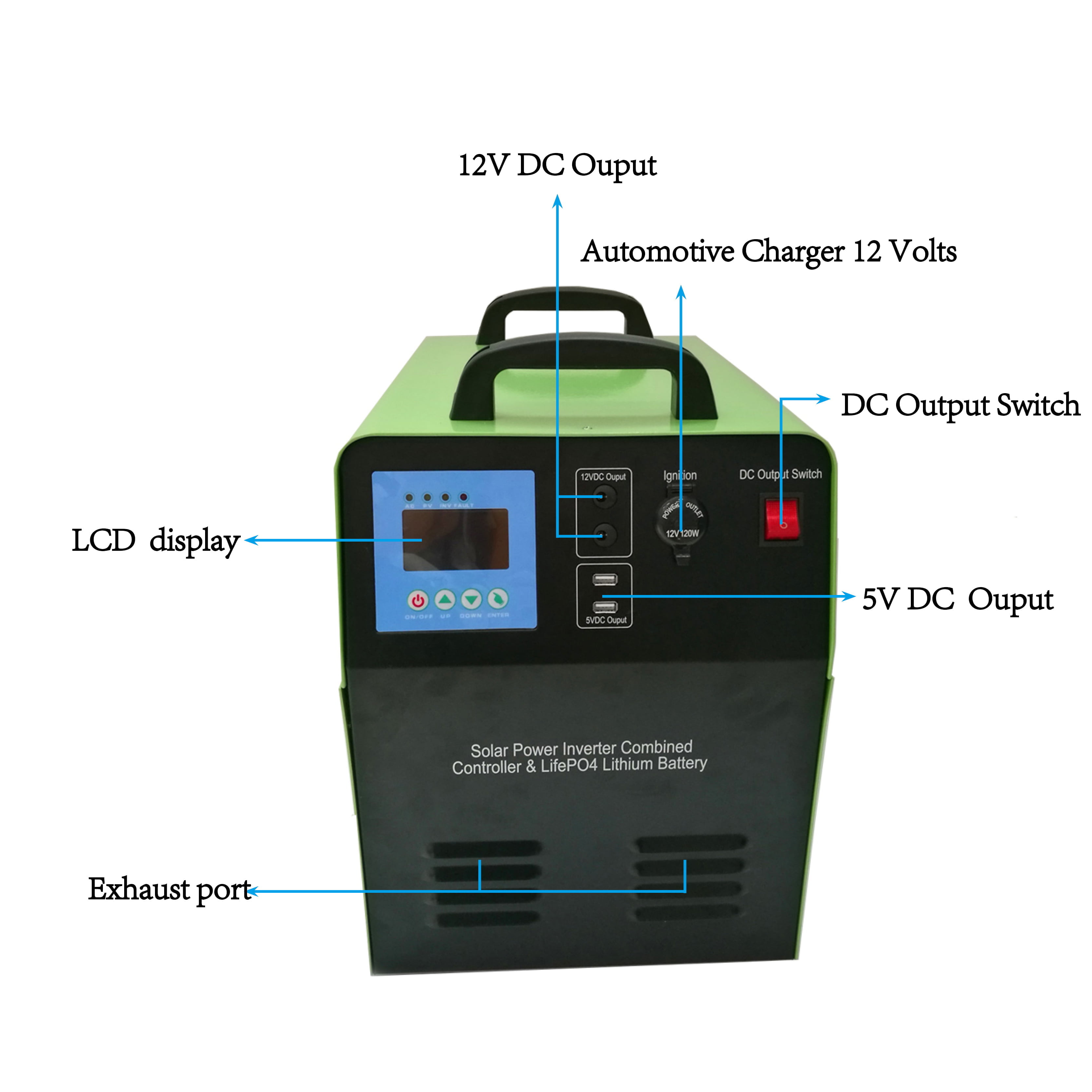

Detail diagram

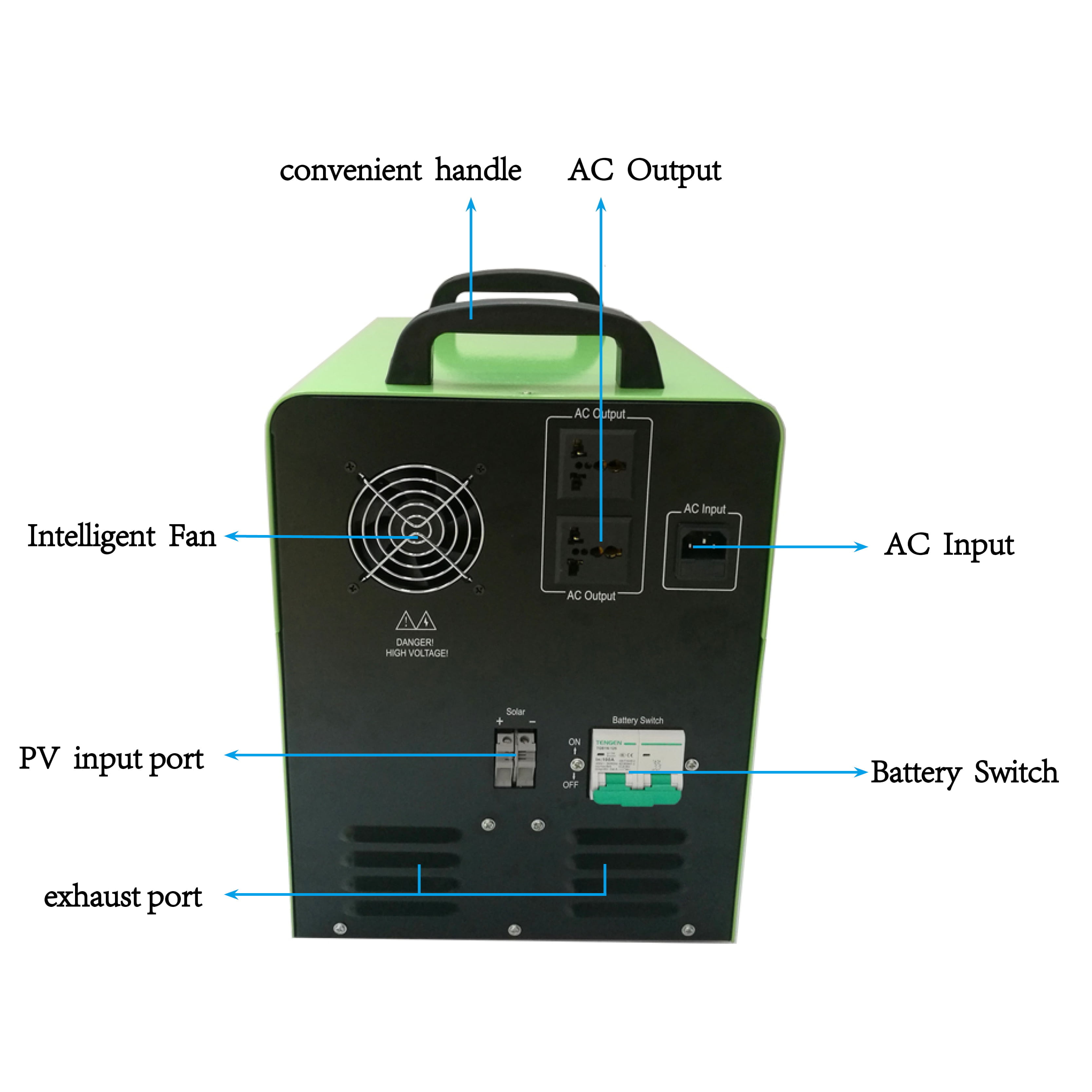

Detail diagram



Our factory:

Corporate environment

Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • Lifepo4 lithium battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • Inverter and charge controller have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement.
