5Kw 6kw 10kw Complete Solar Panel Energy System For Home
5Kw 6kw 10kw Complete Solar Panel Energy System For Home
5Kw 6kw 10kw Complete Solar Panel Energy System For Home

5Kw 6kw 10kw Complete Solar Panel Energy System For Home

5Kw 6kw Solar System Solar Panels Solar Energy System Roof Solar Panel System For Home With Battery Backup

Model : SPS-5kw 10kw

Lead Time : 7-15days

Product Origin : CHINA

Shipping Port : GUANGZHOU/FOSHAN

Payment : 30% deposit by T/T , 70% balance by T/T before shipment

Battery : Lithium Battery/Gel Battery

Application : Residential/ Commercial/Industrial Use

Whatapp:+86 13690853732

Email: candy@sunchees.com

Product Details

What’s in an hybrid solar system?

We assemble, wire, and test all the parts necessary to run your off-grid system right in our warehouse. Our designers are pros at building flexible systems that can be expanded if your energy needs change down the road.

10Kw Off Grid Solar System configuration:

Solar Power Panel System Home

Half cell Solar panel

Model : 470W-500W Vmp:40.5V

Voc:48.7V Size :2176*1098*40mm

High reliability High efficiency up to 22%

Life time : 25 years

solar inverter with MPPT charger controller

Touch color screen Intelligent control,

easy operation Lithium battery , gel battery

all acceptable pure sine wave inverter and a UPS fuction .

Remote monitoring is Auail-able by Using WIFI monitoring kit.

Solar Energy System Light 5Kw
20Kw Hybrid Solar Power System

Lithium battery

Nominal voltage : 51.2V

Nominal Capacity : 260AH

Cycles time: 6000 Life time : 10 years

Weight:150KG

Size:603*412*700mm

Main Disconnect Box

DC Disconnect

AC Disconnect

Battery Disconnect

PV Combiner

Flexible Inputs Optional

IP65 Protection Degree

Solar System Energy For Homes
20Kw Solar System 20Kw

DC Cable & MC4 Connect & YBranch

Cross Section:4mm2,6mm2 Optional

Rated Voltage:600VDC(UL)/1000-VDC(TUV)

Rated Current:55A,70A

Colors:Black For STD,Red Optional.

Lifetimes:≤25 years

PV Mounting System

Mounting Rail & Rail Splice Kit:

Al6005 & SUS304 Bolt. Mid & End Clamps:35,40,45,50mm

L Foot Asphalt Shingle Moount & Hanger Bolt Optional

Cable Clip & Tie Optional

Ground Clip & Lugs Optional

Solar Power Battery System

10KW  solar system load reference:

10KW Solar home System
Load Name Load'S Watt Qty Total Watt
Lights 11w 20 220w
Fan 80w 4 320w
Computer(LCD display) 150w 2 300w
Printer 250w 1 250w
Fax Machine 150w 1 150w
Refrigerator 120w 2 240w
Washing Machine 300w 1 300w
Microwave 1500w 1 1500w
Electric Cooker 300w 1 300w
Air Conditioner(1HP) 750w 4 3000w
Satellite Tv Receiver/Vcd 25w 1 25w
Color Tv(32 inch) 150w 2 300w
Water Pump 200w 1 200w
Total 7105w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the 10000 Watt Solar System work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

10000 Watt Solar System Advantage:

  • 100%green energy,no pollution,no noise
  • High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
  • Stand-alone system,easy installation and operation
  • Nice after-sale service,provide installation guide and technical support ​

Packing details:

  • Solar panels are packed in carton and pallet
  • PV combiners and inverter are packed in wooden box
  • Solar charge controller,gel battery,and cables are packed in carton
  • Solar panel racks are in cartons and bulk packing​

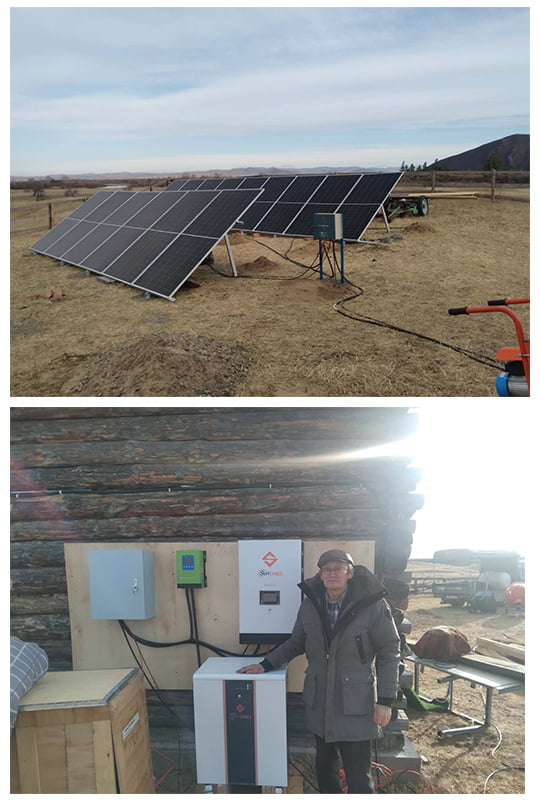

10000 Watt Solar System case:

Solar Energy Storage System 5Kw
