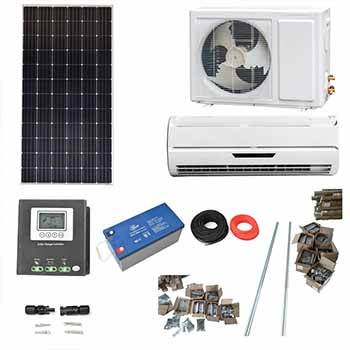

24000Btu Dc Inverter Split Air Conditioner Solar Power System

System Basic Information

Solar panel rated output power: 3000W

12 hours at night+daytime when there is enough sunshine

Solar panel

FS500W mono solar panel

Vmp:54V  Voc:63V

Imp 9.26A   Size : 2090*1106*35mm

25 years life time  (CE TUV) 10 years warranty

Glass:3.2mm Tempered

Terminal block:: IP65 with MC4 connector

Connect way:2pcs panels in series, 3 series in Parallel connect to charge controller

Solar charge controller

Solar charge controller : CP48V/60A

Charger efficiency :99%

Charging mode intelligent control

Size :368*290*127mm , weight :2.8kg

24000BTU Air conditioner

Air conditioner model: DC 48V/24000BTU

Power supply : cooling +Heating

5 years warranty for compressor

EER W/W :4.98  Cooling Rated current :27.29A

Starting current: 3.5A, Max. Current: 37.5A

Indoor/Outdoor noise level:≤45/40/35dB/＜56dB

Ambient temp (cooling/heating):18~50℃/-15-34℃

Application area:30-45m2

Indoor unit size :1040*220*327mm   16.5KG

Outdoor unit size :910*340*700mm  62KG

Gel Battery

Capacity:12V/150AHfull sealed

Solar power Gel battery,

Service life:5-6 years ,

Size:484*171*214mm

Connect way:4PCS in series .2 series in Parallel

panel rack

(Slope)      (Flat)

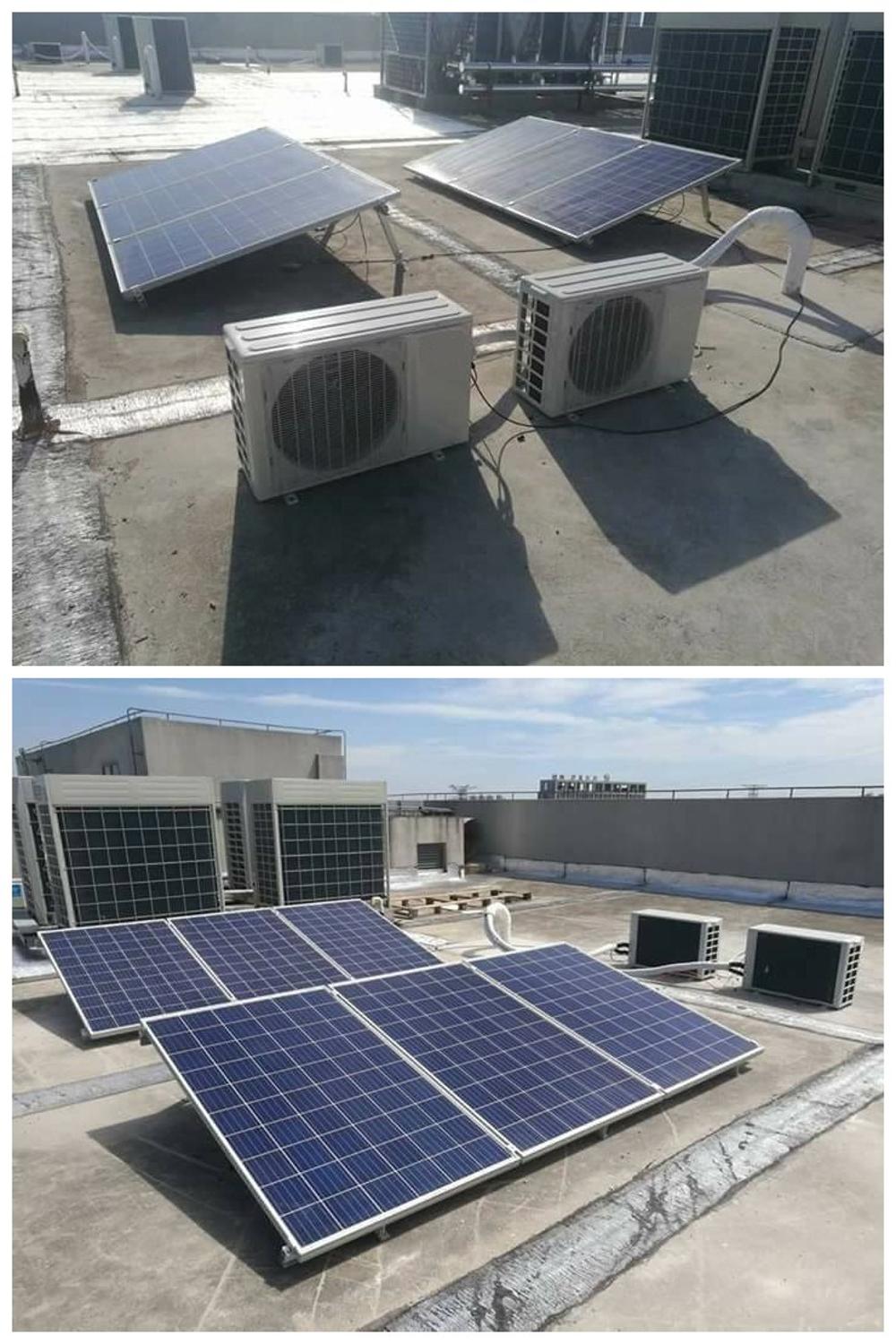

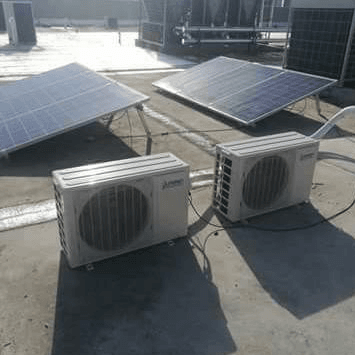

Slope Rooftop or Flat rooftop

wind load:55m/s,snow load:1.5kn/m2

structure :Anodized Aluminum + stainless steel, Angle adjustable, 10 years warranty

Cables

4mm2 pv cable 100M

terminals and MC4

battery connect terminal

DC breakers
