SUNCHEES Solar Powered Split System Air Conditioner, 48V Solar Air Conditioner, Solar Battery Air Conditioner

DC/AC wall split solar air conditioner system:

Dual power AC/DC hybrid solar air conditioning .the air conditioner uses the power from solar panel preferentially, when the solar power is not sufficient, by equipped with dual PV MPPT tracking system, the system will automatically switch to run by city grid power, thus achieve the AC/DC power supply interaction and uninterruptedly supply power to air conditioner ,ensure the system high efficiency up to SEER36

AC/DC solar air conditioner 9000BTU 12000BTU,18000BTU 24000BTU 360000BTUsystem configuration:

SUNCHEES Solar Air Conditioner System

System basic Information

Solar panel rated output power: 2000W

6 hours at night +daytime when there is enough sunshine

Solar panel

Small Solar Powered Air Conditioner

FS500W mono solar panel

Vmp:54V Voc:63V

Imp 9.26A Size : 2090*1106*35mm

25 years life time (CE TUV), 10 years warranty

Glass:3.2mm Tempered

Terminal block：IP65 with MC4 connector

Connect way:2pcs panels in series, 2 series in Parallel connect to charge controller

9000BTU Air conditioner

Best Off Grid Air Conditioner

Air conditioner model: DC 48V/9000BTU

Power supply : cooling +Heating

5 years warranty for compressor

EER W/W :5.35 Cooling Rated current :9.89A

Starting current: 1.5A, Max. Current: 21.87A

Indoor/Outdoor noise level:＜40/33/28dB/＜48dB

Ambient temp (cooling/heating):18~50℃/-15-34℃

Application area:10-20m2

Indoor unit size :850*185*290mm 8.2KG

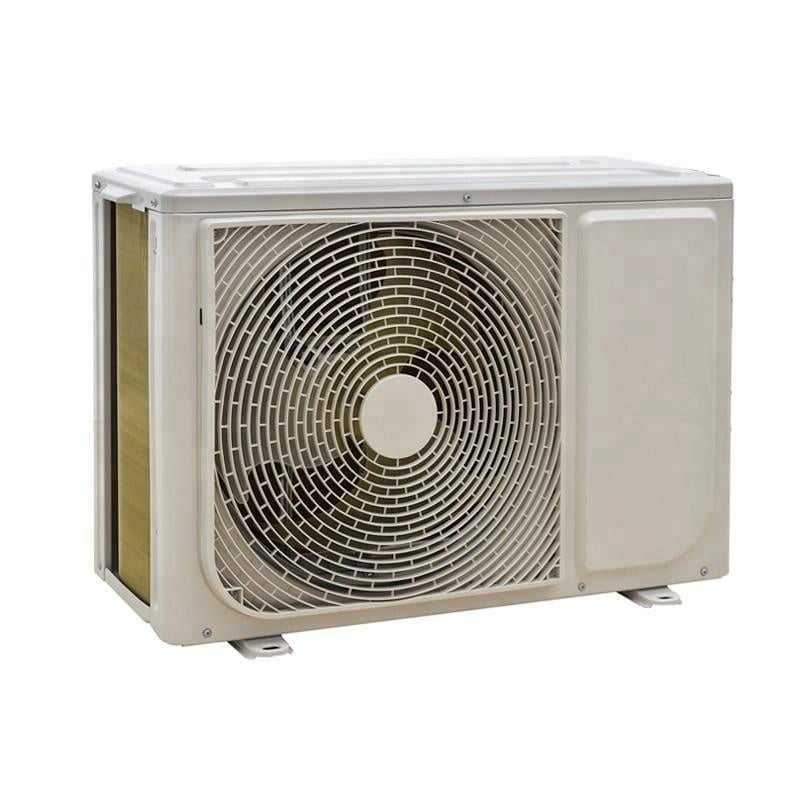

Outdoor unit size :835*320*540mm 35KG

Specification of Wall-mounted AC
Model			KFR-26GW/BPM	KFR-35GW/BPM	KFR-50GW/BPA	KFR-70GW/BPA	KFR-100GW/BPA
Power supply		PH-V-HZ	1Ph, 220-240V～, 50/60Hz	1Ph, 220-240V～, 50/60Hz	1Ph, 220-240V～, 50/60Hz	1Ph, 220-240V～, 50/60Hz	1Ph, 220-240V～, 50/60Hz
Power supply		V	DC50-380V	DC50-380V	DC50-380V	DC50-380V	DC50-380V
Cooling	Capacity	Btu/h	9000	12000	18000	24000	36000
	Input	W	630	920	1320	1980	2850
	Rated current	A	2.86	4.18	6	9	12.95
	EER	W/W	4.12	3.8	3.78	3.53	3.51
Heating	Capacity	Btu/h	9500	13000	19000	25000	37500
	Input	W	663	1050	1465	2050	3000
	Rated current	A	3.01	4.77	6.66	9.32	13.63
	COP		4.23	3.62	3.55	3.56	3.67
Moisture Removal		L/h	1.0	1.3	1.7	2.5	3.6
Max. input consumption		W	1320	1650	2300	2600	4250
Max. current		A	6	7.5	10.45	11.85	19.31
Compressor	Model		ASN98	ASN98	DA150S1C-20FZ	ATF235D22TMT	ATF235D22TMT
	Type		ROTARY	ROTARY	ROTARY	ROTARY	ROTARY
	Brand		TOSHIBA(GMCC)	TOSHIBA(GMCC)	TOSHIBA(GMCC)	TOSHIBA(GMCC)	TOSHIBA(GMCC)
	Capacity	Btu/h	9889	9889	15175	24293	24293
	Thermal protector		INT01L-4639 / CS-74	INT01L-4639 / CS-74	INT01L-4639 or KSD301	NO	NO
	Thermal protector position		EXTERNAL	EXTERNAL	EXTERNAL	EXTERNAL	EXTERNAL
	Capacitor	uF	NO	NO	NO	NO	NO
	Refrigerant oil/oil charge	ml	ESTER OIL VG74 /480	ESTER OIL VG74 / 480	ESTER OIL VG74 / 500	RB75EA/670 cc	RB75EA/670 cc
Indoor fan motor	Model		WZDK13-38G-1	WZDK13-38G-1	WZDK30-38	SIC-55CVL-F159-1(ZKFP58-8-1)	SIC-55CVL-F159-1(ZKFP58-8-1)
	Input	W	13	13	30	58	58
	Capacitor	uF	NO	NO	NO	NO	NO
	Speed(Hi/Mi/Lo)	r/min	1130/950/800	1130/950/800	1200/1000/850	1200/1000/850	1200/1000/850
Indoor coil	a.Number of rows		2	2	2	2	2
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37	21x13.37	21x13.37	21x13.37	21x13.37
	c.Fin spacing	mm	1.2	1.2	1.2	1.3	1.3
	d.Fin type (code)		Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ7,innergroove tube	Φ7,innergroove tube	Φ7,innergroove tube	Φ7,innergroove tube	Φ7,innergroove tube
	f.Coil length x height x width	mm	650x315x26.74	650x315x26.74	750x294x26.74	780x315x26.74	780x315x26.74
	g.Number of circuits		2	2	3	4	4
Indoor air flow (Hi/Mi/Lo)		m3/h	559/454/366	559/454/366	721/566/458	970/780/590	970/780/590
Indoor noise level (Hi/Mi/Lo)		dB(A)	41.5/37.1/32.7	41.5/37.1/32.7	43.7/39.3/35.1	45/36/31.5	45/36/31.5
Indoor unit	Dimension(WDH)	mm	850x185x290	850x185x290	957x213x302	1040×220×327	1040×220×327
	Packing (WDH)	mm	950x290x385	950x290x385	1035x305x380	1120x310x405	1120x310x405
	Net/Gross weight	Kg	8.2/10.4	8.2/10.4	9.5/12.5	11.9/15.2	11.9/15.2
Outdoor fan motor	Model		WZDK40-38G-W-1	WZDK40-38G-W-1	MFE-40VVL(B)	SIC-71FW-F1120-3(WZDK120-38G)	SIC-71FW-F1120-3(WZDK120-38G)
	Brand		WEILING	WEILING	FUTINAJING	NIDEC	NIDEC
	Input	W	40	40	40	120	120
	Capacitor	uF	NO	NO	NO	NO	NO
	Speed	r/min	850	850	850	900	850
Outdoor coil	a.Number of rows		2	2	2	4	4
	b.Tube pitch(a)x row pitch(b)	mm	25.4*22	25.4*22	25.4*22	25.4*22	25.4x22
	c.Fin spacing	mm	1.5	1.5	1.5	1.5	1.5
	d.Fin type (code)		blind	blind	blind	blind	blind
	e.Tube outside dia.and type	mm	Φ9.52,innergroove tube	Φ9.52,innergroove tube	Φ9.52,innergroove tube	Φ9.52,innergroove tube	Φ9.52,innergroove tube
	f.Coil length x height x width	mm	900x508x22	900x508x22	900x508x22+55050822	890x660.4x44	103176244+58076222
	g.Number of circuits		1	1	1.7	2	2.5
	h.Material and coatings		Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium
Outdoor air flow		m3/h	2100	2100	2100	2900	3800
Outdoor noise level		dB(A)	＜50	＜50	＜52	≤56	≤64
Outdoor unit	Dimension(WDH)	mm	835320540	835320540	835320540	910340700	946x410x810
	Packing (WDH)	mm	900400600	900400600	900400600	1063480760	1090x500x860
	Net/Gross weight	Kg	33/39	35/40	39/44	56/62	65/73
Refrigerant type and charge volume		g	R410a(950)	R410a（1050)	R410a(1400)	R410a(1950)	R410a(3000)
Design pressure		MPa	4.3/1.5	4.3/1.5	4.3/1.5	4.3/1.5	4.3/1.5
Refrigerant piping	Liquid side/ Gas side	mm(inch)	3/8 1/4	3/8 1/4	1/2 1/4	5/8 3/8	3/4 3/8
	Max. refrigerant pipe length	m	15	15	20	25	30
	Max. difference in level	m	8	8	10	10	15
Drain pipe size		mm	16	16	16	16	18
Connection wiring		m	4.3	4.3	4.3	4.3	4.3
Plug type			16A	16A
Thermostat type			NTC	NTC	NTC	NTC	NTC
Operation temp		℃	17℃~30℃	17℃~30℃	17℃~30℃	17℃~30℃	17℃~30℃
Ambient temp (cooling/heating)		℃	18-52/-15-34	18-52/-15-34	18-52/-15-34	18-52/-15-34	18-52/-15-34
Application area		m2	12-18	16-23	24-35	32-47	47-63
Qty’per 20’ /40’ /40'HQ			87/174/211	87/174/211	83/166/202	52/104/128	45/90/109
Refrigerant piping	In side/ Out side	mm	9.52/8.12、6.35/5.12	9.52/8.12、6.35/5.12	12.7/11.1、6.35/5.12	15.88/14.08、9.52/8.12	15.88/14.08、9.52/8.12
Cabined material			Galvanized sheet	Galvanized sheet	Galvanized sheet	Galvanized sheet	Galvanized sheet

Advantage:

Low energy consumption,solar power utilization rate more than 95%
Saving electricity 50%-80%
No battery,no controller,solar panel connect directly
Economical price
24hours working per day

Application:

Suitable for place with stable 220V AC city grid power supply and mostly use the air conditioner at daytime.

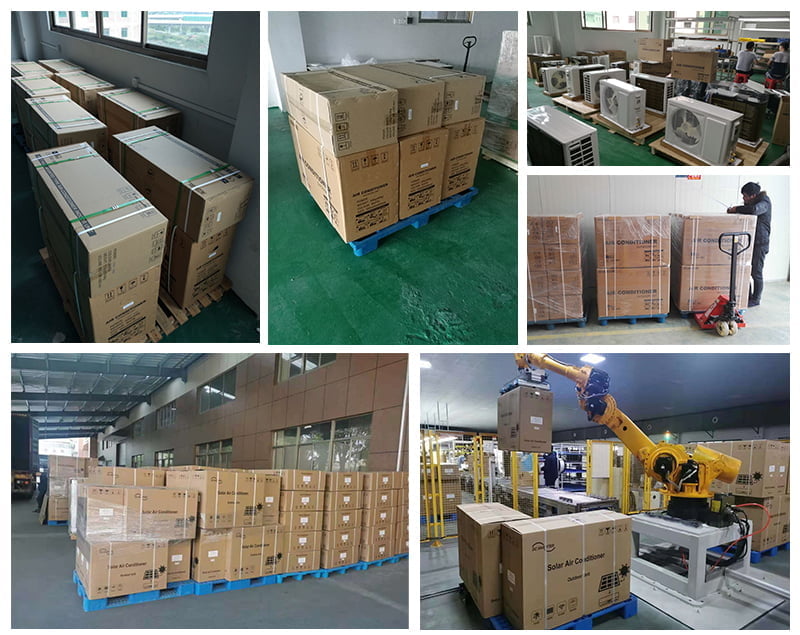

Packing details:
Solar panels are packed in carton and pallet
Air conditioner unit is packed in Carton with Polyfoam

Our campany:

Solar Air Conditioner Price In Ghana

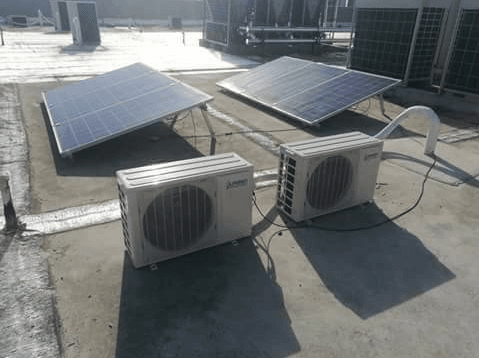

Solar Air Conditioner System case：

Air conditioner buyer show picture Solar Split Unit Air Conditioning

Warranty policy:

Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
Air conditioner compressor has 5 years warranty ,other parts have 2 years warranty,ship the free main circuit board by DHL or FEDEX for service
