● Double CPU intelligent control technology, performance excellence;
● IGBT board ,100% imported raw materials from Germany,These materials can withstand higher voltage and current to better protect the inverter,
● Innovative operation system.All the operation adjustment can be done on the touch screen easily.Can see daily data,monthly data and total data on the screen
● The AC priority / DC priority / power saving mode can be set up
● WIFI is optional.can control the inverter remotely and check the running data
● The pure sine wave output, can adapt to various types of load;
● Wide input voltage range,high-precision output automatic voltage function.
● Touch color screen, intelligent control, easy operation
● The output overload, short circuit protection, automatic protection and alarm;
● Lithium battery,gel battery,lead-acid battery are all acceptable.One touch can switch battery type

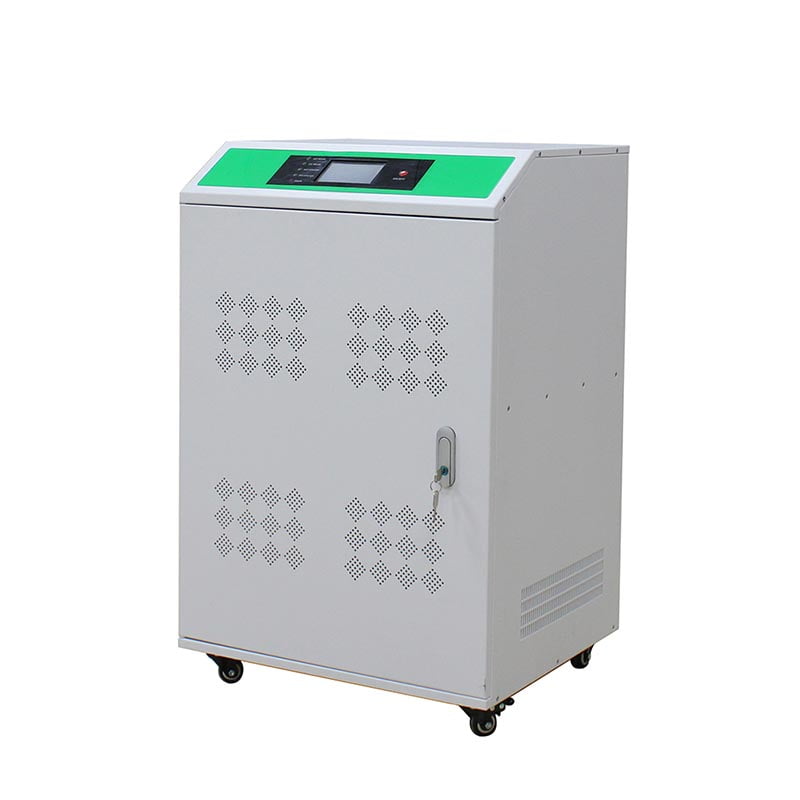

SOLAR INVERTER SERIES-PRODUCT OVERVIEW
MHIC series with dual MCU design, PV charge controller and inverter integrated optimization solutions, to provide users with the best experience. Pure sine wave output to meet various types of load; mains supply preferred mode / power saving mode /battery preferred mode for easy meeting of the needs of different users. Using intelligent optimization SOC control, a separate three-stage solar charge management, improve the effectiveness of the charging of the battery.LCD display integrated inverter and photovoltaic panels, equipment operating status intuitive, concise manipulation.It is widely applied to families, schools, streets, border,pastoral, industrial equipment, satellite communications equipment, ships and so on.
Model: MPPT
10KW
Battery
rated voltage(VDC)
96
AC Charge Current
30A MAX
Battery Type
Can be set
Input
Voltage Range
170-275VAC
frequency
45-65Hz
Output
Voltage Range
220VAC-240VAC; ±5%
frequency
50/60Hz±1%
Output wave
Pure Sine Wave
Change time
＜10ms(Typical load)
Efficiency
＞88%（80% Resistive load）
overload
110-120%/30S；＞160%/300ms；
Protection function
Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller
MPPT Voltage Range
48VDC:72V~200VDC;96VDC:144V~300VDC
PV Power
48VDC-100A(5300W)
90VDC-100A(10600W)
Rated charge current
100A(Max)
MPPT efficiency
≥99%
Average charging voltage(lead acid battery
48V/56.8VDC;96V/113.6VDC
Floating charge voltage
48V/56VDC;96V/113VDC
Operating ambient temperature
-15-+50℃
Storage ambient temperature
-20 - +50℃
Operating / storage environment
0-90% No Condensation
Dimensions:W * D * H (mm)
550*475*860mm
Packing size: W * D * H (mm)
640*545*1000m
